How To Connect A Crossover To An Amplifier

Setting up a good sound system involves more than just plugging in speakers. If you want clear, balanced audio — especially in car or home setups — adding a crossover between your audio source and amplifier helps direct the right frequencies to the right speakers. This guide will help you on how to connect crossover to amplifier so you get the best sound quality.

1. Understand What a Crossover Does

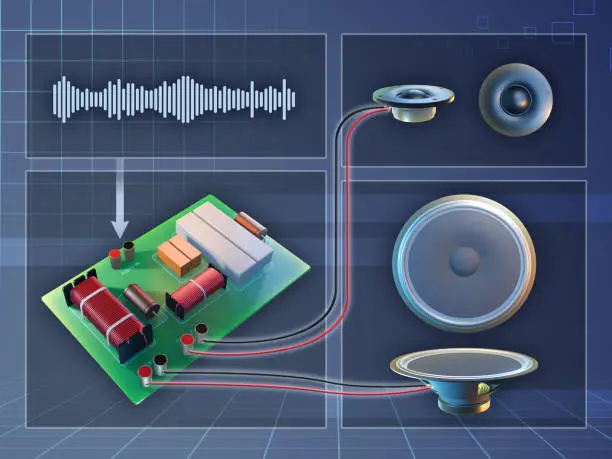

A crossover separates audio signals into different frequency ranges.

• High frequencies go to tweeters (for treble sounds).
• Midrange frequencies go to mid speakers.
• Low frequencies go to subwoofers (for bass).
  By using a crossover, you prevent speakers from handling sounds they aren’t designed for, improving clarity and preventing damage.

2. Gather Your Equipment

Before you begin, make sure you have:

• A crossover (active or passive, depending on your system)
• An amplifier
• RCA cables or speaker wires (depending on your system)
• Power cables and ground connections (if it’s a car system)

3. Connect the Audio Source to the Crossover

• Use RCA cables to run the audio signal from your head unit (car stereo) or receiver (home system) to the input section of the crossover.
• Make sure the left and right channels are matched correctly.

4. Connect the Crossover to the Amplifier

• From the crossover outputs, use RCA cables to connect to the inputs on the amplifier.
• For a multi-channel setup, you may have separate outputs for highs, mids, and lows — each going to its own dedicated amplifier or amplifier channel.
• Label your cables if needed to avoid confusion.

5. Connect the Amplifier to the Speakers

• Wire the amplifier’s output terminals to the corresponding speakers: tweeters for highs, mids for midrange, subwoofers for bass.
• Check the speaker impedance and amp compatibility to avoid overloading.

6. Power Everything Up and Test

• Double-check all connections, making sure power and ground wires are securely attached.
• Power on your system.
• Play some music and adjust the crossover settings to balance the frequencies according to your taste.
• Fine-tune gain and frequency cutoffs carefully to avoid distortion or damage.
