How To Install An Inverter

An inverter is essential for converting DC power from a battery into AC power for home appliances during power outages. Proper installation ensures efficiency, safety, and optimal performance. Here is how to install inverter safely and effectively.

1. Choosing the Right Inverter

Selecting the appropriate inverter depends on power requirements.

• Calculate the total wattage of appliances that will be connected.
• Choose an inverter with a capacity that exceeds the total power requirement.
• Decide between a modified sine wave or pure sine wave inverter based on appliance sensitivity.
• Ensure compatibility with the battery type and voltage (e.g., 12V, 24V, or 48V).

2. Selecting a Safe Installation Location

Proper placement ensures safety and efficiency.

• Install the inverter in a dry, well-ventilated area to prevent overheating.
• Keep it away from direct sunlight, flammable materials, and moisture.
• Choose a location close to the battery bank to minimize voltage drop.
• Ensure there is enough space for air circulation and future maintenance.

3. Gathering Required Tools and Materials

Having the necessary equipment speeds up installation.

• Inverter unit
• Deep cycle battery or battery bank
• Battery cables and connectors
• Fuse or circuit breaker for protection
• Screwdriver, wrench, and insulation tape

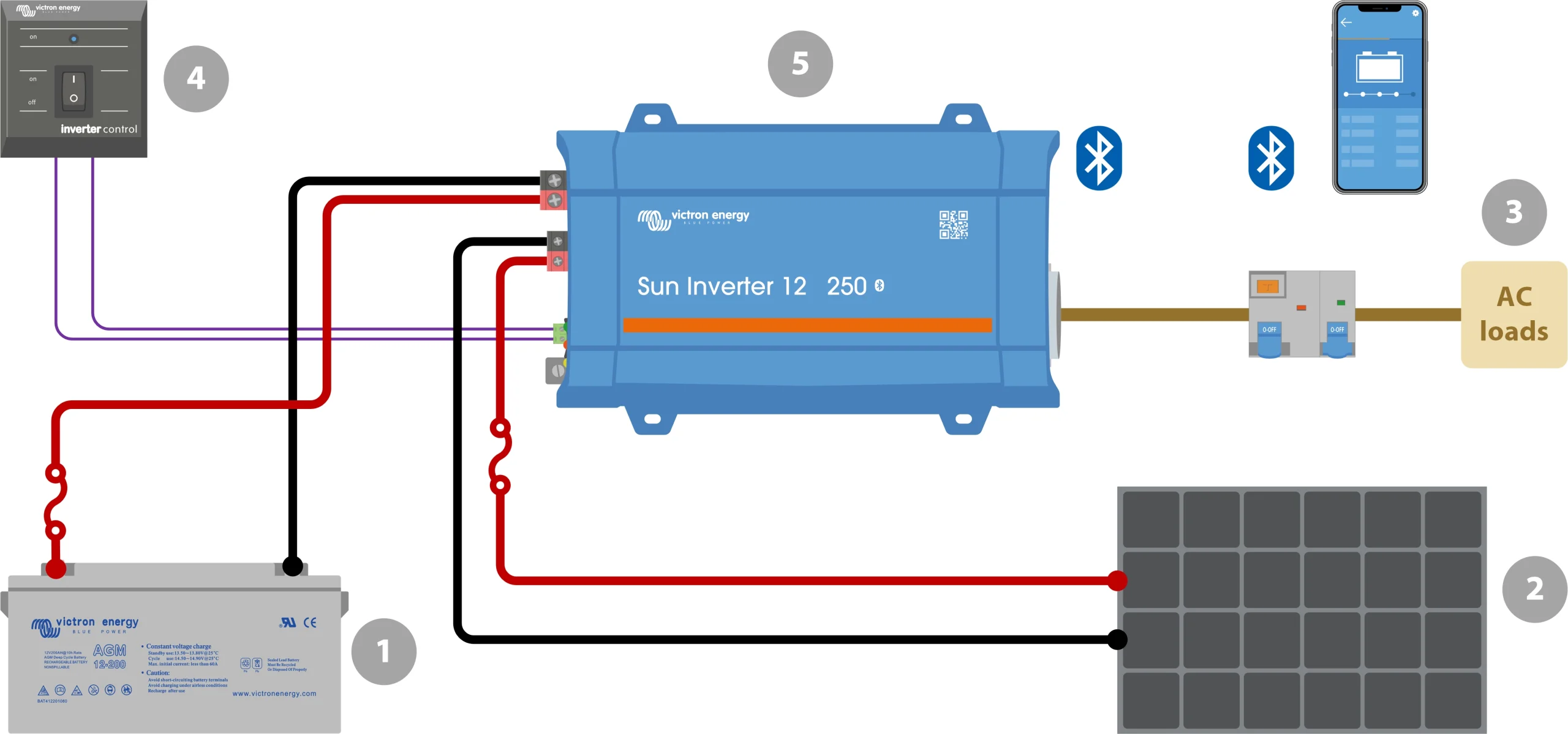

4. Connecting the Battery to the Inverter

Secure wiring ensures safe and stable operation.

• Turn off the inverter before making any connections.
• Connect the positive (red) terminal of the battery to the positive input on the inverter.
• Connect the negative (black) terminal of the battery to the negative input on the inverter.
• Use thick, high-quality cables to minimize resistance and power loss.
• Install an inline fuse or circuit breaker on the positive cable for protection.

5. Connecting the Inverter to the Load

Appliances need a reliable connection for proper functioning.

• Plug appliances directly into the inverter’s AC outlets.
• For larger installations, connect the inverter to a distribution board.
• Avoid overloading by keeping the power draw within the inverter’s capacity.
• Use extension cords with proper ratings if needed.

6. Testing the Inverter

Before regular use, check functionality.

• Turn on the inverter and ensure the power indicator lights up.
• Connect a small appliance to confirm proper operation.
• Monitor the voltage output to ensure it is within the expected range.
• Check for any unusual noises, overheating, or error warnings.

7. Maintaining the Inverter for Longevity

Regular maintenance keeps the inverter in good working condition.

• Clean dust and debris from the unit to prevent overheating.
• Check battery connections for corrosion and tighten loose cables.
• Avoid draining the battery completely to extend its lifespan.
• Inspect the inverter display or indicators for error messages.
